Scrubber for reduction of ethylene oxide

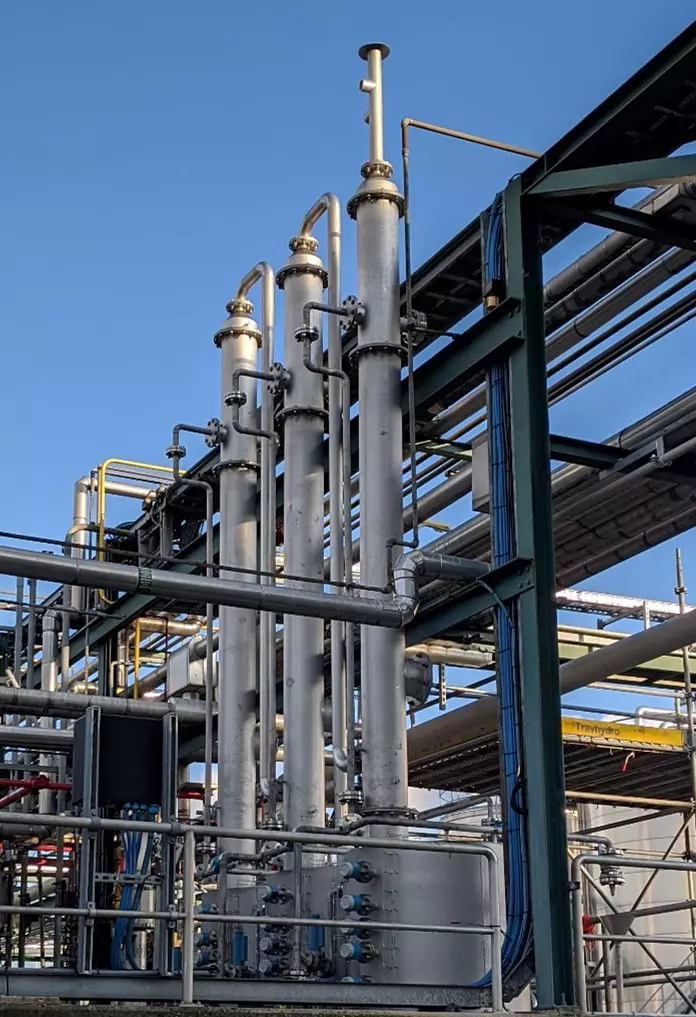

A complete scrubber installation consisting of three vertical columns, including integrated liquid buffers, which is specially configured for a process gas flow with a nominal throughput of 30 - 150 Nm3/h.
01 First and second stage acid scrubber (H2SO4)
The contaminated gas enters via a side entry at the bottom and then passes through a packed bed of random packings where washing water with dissolved sulfuric acid (H2SO4) is distributed by means of a sprayer to be able to wash out EO and PO.
02 Alkaline scrubber (NaOH)
The contaminated gas enters the third stage via a side entry at the bottom and also passes through a packed bed of random packings bodies. However, washing water containing dissolved caustic soda (NaOH) is distributed over this.
03 Package system
- Stainless steel 316 columns
- Siemens S7-1500 PLC in EX-P cabinet
- Integrated buffers
- Agglomerator / droplet separators
- Wire mesh demisters
- Centrifugal pumps suitable for ATEX zone
- Endress + Hauser instrumentation for ATEX zone
Are you facing any challenges?
Get in touch with us
250 mmColumn diameter
4.500 mmTotal height
DN100Gas inlet/outlet
ambientTemperature
atmosphericPressure
