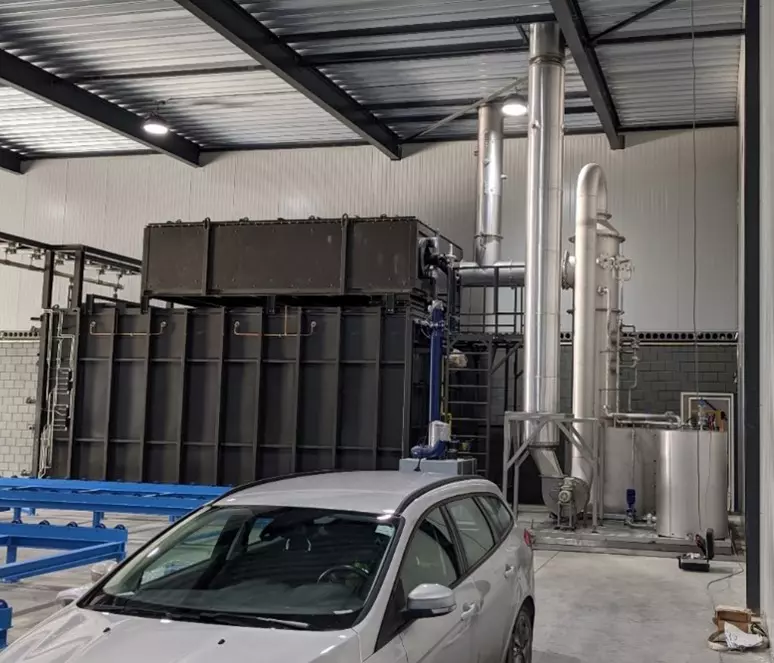

Scrubber for gas cleaning of pyrolysis ovens
01 Premium AISI 316L Construction
A custom-made vertical scrubber constructed entirely of AISI 316L, ensuring durability and resistance to corrosion. The scrubber operates using a closed loop system, featuring an open spray washing section for optimal gas cleaning.
02 Comprehensive Scrubber Components
Complete with removable spray lances, tangential cone spray nozzles, agglomerator, separation bottom, end separator, and an external water buffer for the second washing section.
Are you facing any challenges?
Get in touch with us
03 Alkaline-Oxidative Wash Section
Featuring a wash section that utilizes caustic soda (NaOH) and sodium hypochlorite (NaOCl) solutions, with dosages determined by measured pH and free chlorine values.
04 Advanced control system
The system is equipped with a Siemens S7-1500 PLC in a Rittal stainless cabinet for reliable and precise control.
approx. 6,000 mmTotal height
ø 800 mmDiameter
1,500 – 3,000 – 4,500 Nm3/hGas flow rate
326 °CGas temperature
ambientPressure
05 Gas composition
10,7 %O2
5,9%CO2
2,2 mg/Nm3CO
86,6 mg/Nm3NOx
0,77 mg/Nm3SO2
3,1 mg/Nm3VOC
0,4 mg/Nm3HCl
0,037 mg/Nm3HF
0,035 mg/Nm3NH3
1,5 mg/Nm3Hg
181 mg/Nm3Metals
1,6 mg/Nm3Fine dust
